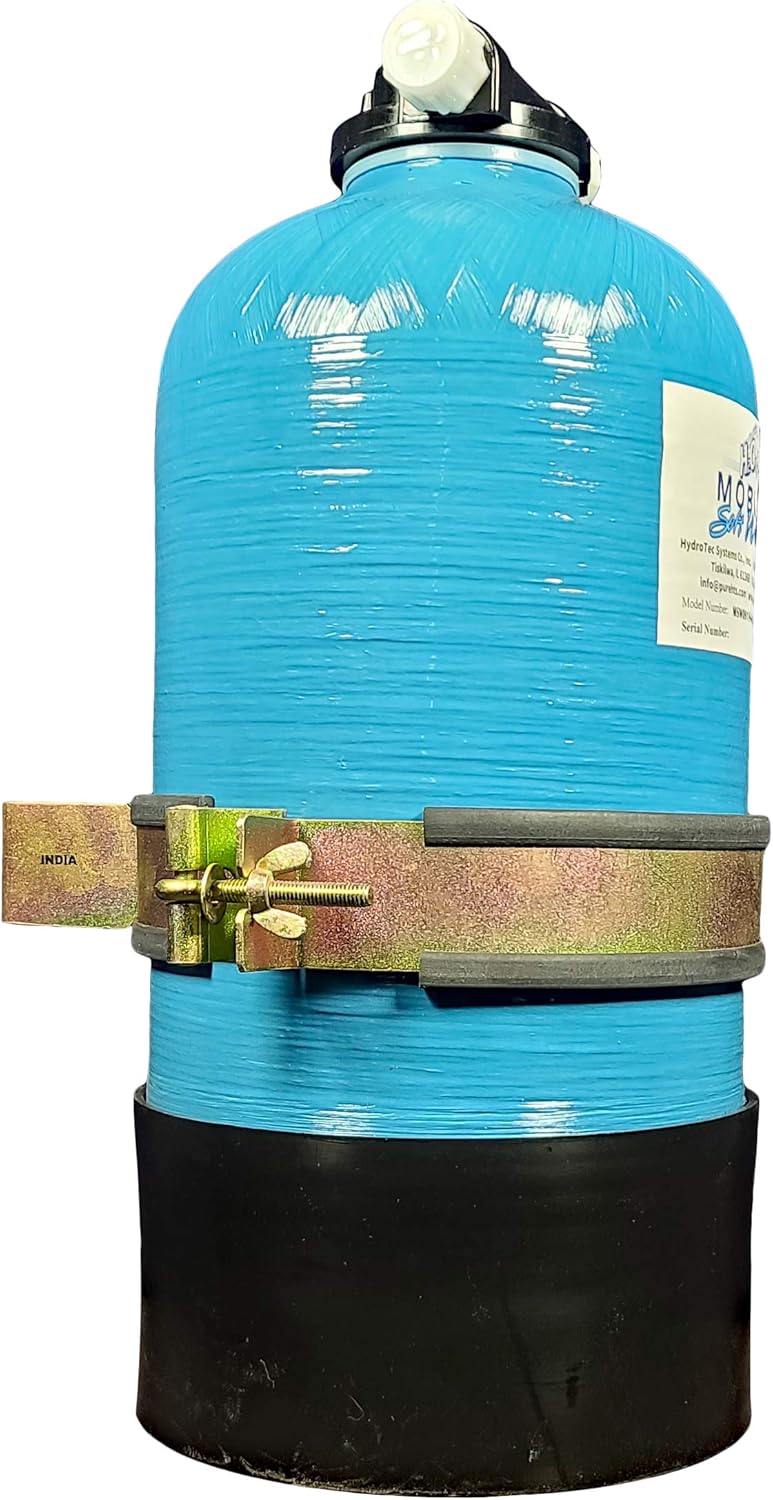

MOBILE SOFT WATER(R Portable 16,000 Grain Unit with Tank, Tank Head, NSF 61 Male GHC Tank Connections, Distributor, Resin, and Instructions. Metal Installation clamp Supplied as Pictured.

MSW0918-M-16S-C-0-0-3 manually regenerated softener with 16,000 grains capacity. The Softener is capable of treating up to 5 gallons per minute of supply water with a 10-grain Total Hardness load to 0 soft conditions on a continuous base up to 1600 gallons of conditioned water. We are supplying all new equipment and components with a one-year limited warranty on materials. The system is complete. Equipment description and related shipping information are as follows: A.The softener vessel is a 9-inch diameter fiberglass reinforced plastic pressure vessel designed for 150 psig operating pressure, B.The premium tank head is a three-piece molded PVC assembly with a 2.5” removable cap where salt is added during the regeneration process. C.In the cap is a resin screen provided to retain the softener resin when the softener is laying on its side during shipping. D.The draw tube is a 0.75 OD distributor tube with a resin screen that is fixed to the tank head adapter and extends into the pressure vessel to the bottom of the resin. This tube allows normal flows with a slightly lower pressure drop, E.The inlet connection is a female 0.75” lead-free brass, rated for NSF 61garden hose connection, F.The outlet is a 0.75” lead brass free, NSF 61 rated male NPT piping connection, G.Includes Installation strap permitting securing the softener into a semi-permanent location H.0.5 cubic feet of C-108 cation resin 8% cross-link styrene softening resin is loaded into the tank.

• Steel Installation Strap
• 16,000 grains Total Hardness Removal Portable and Manual
• Suitable for Recreational Vehicle Use
• LEAD FREE USEPA, NSF61 Approved Water Connections
• Removes Total Hardness and Soluble Iron
