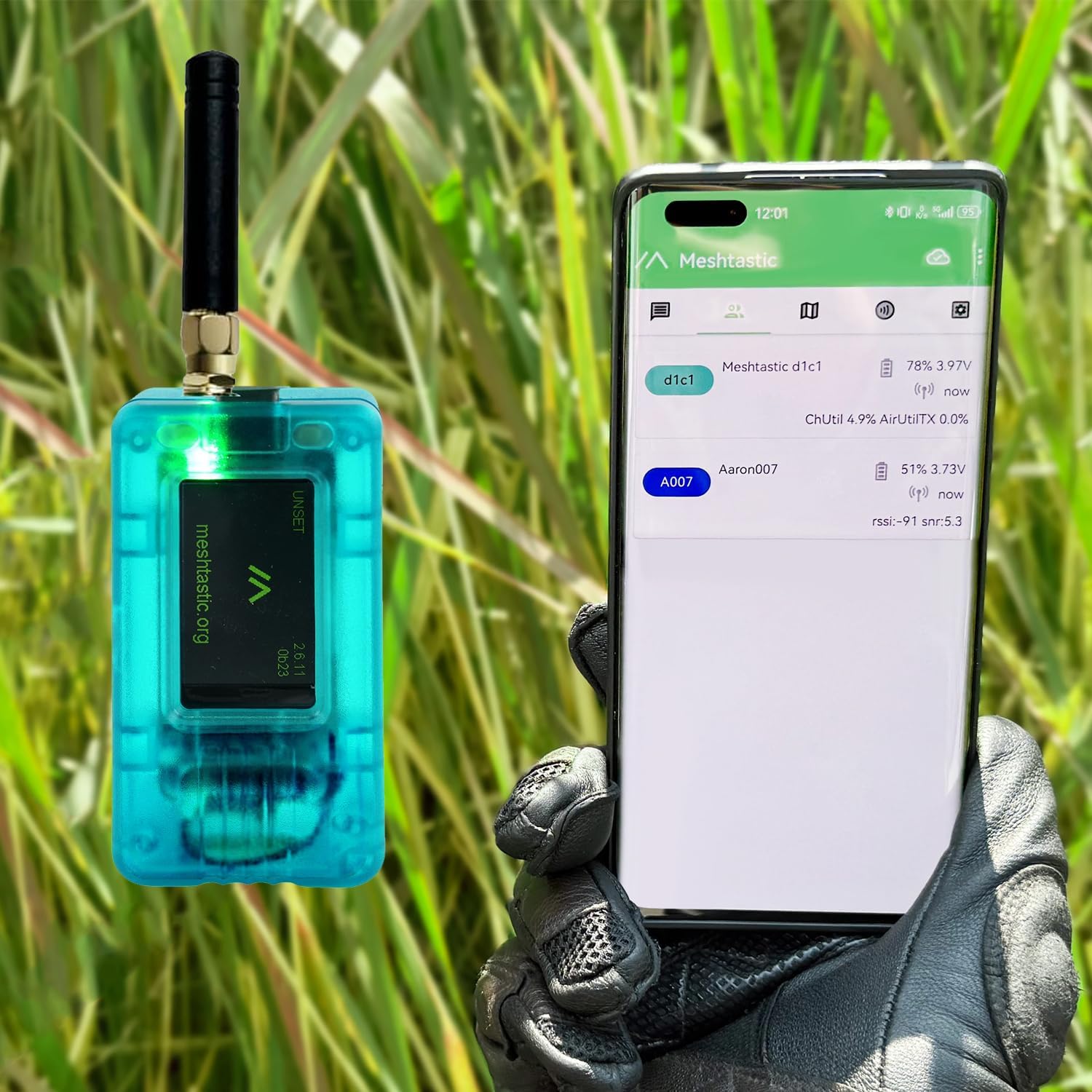

Heltec Mesh Node T114 V2 Tracker nRF52840 SX1262 LoRa Bluetooth 5.0 LoRaWAN Development Board Kit 1.14 Inch LCD Screen Display Compatible with Meshtastic Arduino

Description: The Mesh Node T114 integrates a dual-chip design featuring the nRF52840 and SX1262, supporting both LoRa and Bluetooth communication simultaneously. It offers optional GPS and display modules, and enables flexible power management through USB, lithium battery, and solar panel interfaces. Compared to the Heltec V3, it demonstrates superior low-power performance. Its six-layer PCB layout and optimized RF circuit design make it particularly well-suited and reliable for LoRa/LoRaWAN applications such as device tracking and remote monitoring systems. Furthermore, the T114 supports development via environments like Arduino and PlatformIO and is fully compatible with established open-source projects such as Meshtastic and MeshCore. Specifications: MCU：nRF52840 LoRa Node Chip：SX1262 Frequency： 470~510MHz； 863~870MHz； 902~928MHz Max. TX Power：21±1dBm Max. Receiving Sensitivity：-135dBm @ SF12, BW=125kHz Bluetooth：Bluetooth LE, Bluetooth 5, Bluetooth mesh Hardware Resource：USB 2.0, 4×SPI, 2×TWI, 2×UART, 4×PWM, QSPI, I2S, PDM, QDEC, etc. Memory：1MB ROM, 256KB SRAM Interface： Type-C USB, 2×1.25 lithium battery connector, 2×1.25 solar panel connector, LoRa ANT (I.P.E.X 1.0), 8×1.25 GPS module connector, 2×13×2.54 Header Pin Battery：3~4.2V battery power supply and charging (Not included) Operating Temperature: -20℃ ~ 70℃ Dimensions: 50.80×22.86mm Low Power Consumption in Deep Sleep: 11μA Display: Onboard 1.14-inch TFT-LCD display Package includes: 1 x Mesh Node T114 1 x LoRa Antenna 1 x SH1.25x2 Battery Connector 1 x Sensor connection wire 1 x L76K GNSS Module 1 x Protective Case Set

• Dual-Mode Wireless Connectivity: Equipped with nRF52840 (Bluetooth 5) and SX1262 LoRa chipset, supporting simultaneous LoRa & Bluetooth communication and mesh networking. Package Comes with GPS module and 1.14‑inch full‑color TFT‑LCD display
• Flexible Power Management: Features Type‑C USB, 1.25mm Li‑Po battery connector, and solar panel interface. Built‑in voltage regulation, ESD/short‑circuit protection, and RF shielding. Operating range: –20 °C to 70 °C
• Ultra‑Low Power Operation: Consumes only 11 µA in deep‑sleep mode, offering significantly extended battery life for outdoor applications such as remote monitoring and asset tracking
• Developer‑Friendly Platform: Fully compatible with Arduino and PlatformIO. Includes comprehensive libraries and examples, ready for open‑source projects like Meshtastic and MeshCore
• Industrial‑Grade Reliability: Six‑layer PCB layout and optimized RF circuit design ensure stable performance. Rich I/O options (SPI, UART, PWM, I2S, etc.) and expansion connectors support versatile project integration
