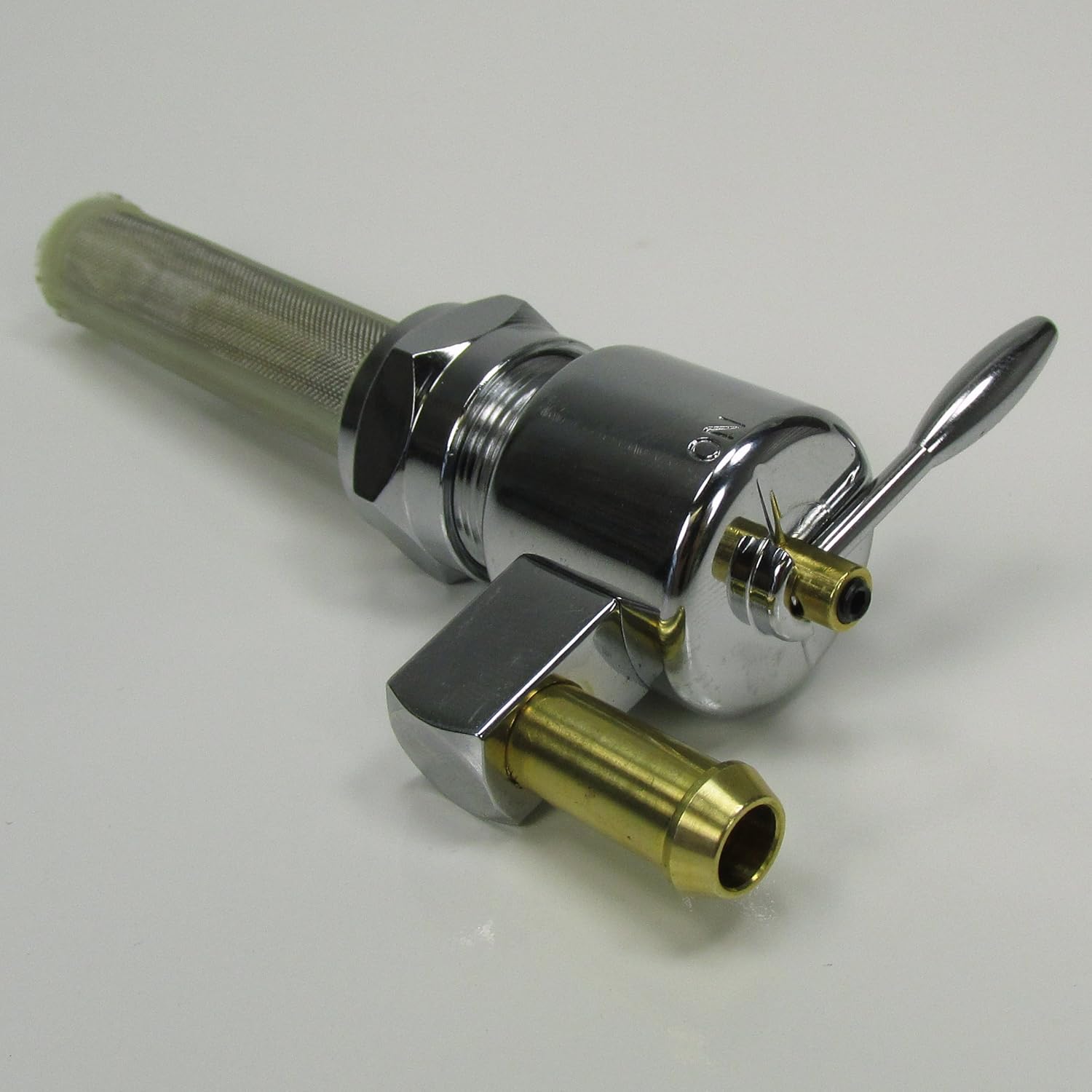

Chrome 22mm HI-FLOW Petcock Straight "DOWNWARD" Fuel Outlet Shut Off Valve for 1975-2006 Harley Big Twin & Sportster Models w/22mm Petcock Bung - Use with 3/8" ID Fuel Hose - Replaces HD Pt # 62168-81

For use with later 1975-2006 Harley models. Can be used with GAS and GASONOL! Replaces HD Part # 62168-81 Listing is for ONE (1) Filtered HI-FLOW Petcock with a STRAIGHT "Downward" Fuel Outlet constructed of high grade FORGED BRASS. Petcocks are then Chrome Plated to look good for years to come (Also available in Polished Brass.) Works with later style 1975 - 2006 Harley Models. Internal Female 22MM thread. 3/8" barb accepts 3/8" ID hose (Some 5/16" ID Hose will work as well.) "R" (Reserve), "ON" and "OFF" just like OEM. Comes with a new o-ring. The built-in filter allows for extra protection against debris entering your fuel system while still providing maximum flow. Please make sure that you have at least 3" from the bottom of the petcock bung and the nearest obstruction in your tank (Baffles etc). We also offer these Petcocks in POLISHED BRASS. Dimensions: Overall Length = 4-3/4" Depth = 1-13/16" (Including Hose Barb) "Face" Width = 1-1/4" Thread = Internal Female 22MM The Length from the bottom of the threads to the top of the filter is 3" (Please check to make sure that this will fit in your tank.) Finish: Chrome Accommodates: Works with later style 1975 - 2006 Harley Models. A fuel hose with a 3/8" ID. FL 1974-1984 FX 1975-1984 FXST 1984-1994 FLST 1986-1994 XL 1975-1995 FXR 1982-1994 FXD 1991-1994 When referencing the Fuel Outlet Orientation: PLEASE READ If the Lever is in the "OFF" position and pointed at you, "ON" is to the left and "R" (Reserve) is to your right. "Left 90" means that the Fuel Outlet is facing the LEFT. "Right 90" means that the Fuel Outlet is facing the RIGHT. "Straight" or "Downward" means that the Fuel Outlet is facing DOWN towards the ground.

• Replaces HD Part # 62168-81. For use with later 1975 - 2006 Harley models. Listing is for ONE (1) CHROME HI-FLOW Petcock with a STRAIGHT "DOWNWARD" Fuel Outlet constructed of high grade FORGED BRASS. Petcocks are then Chrome Plated to look good for years to come (Also available in Polished Brass.)
• This Petcock is STRAIGHT "DOWNWARD" ***Available with 3 Different Fuel Outlets (LEFT 90 - RIGHT 90 - STRAIGHT "DOWNWARD")*** PLEASE READ - When referencing the Fuel Outlet Direction: If the Lever is in the "OFF" position and pointed at you, "ON" is to the left and "R" (Reserve) is to your right. "Left 90" means that the Fuel Outlet is facing the LEFT. "Right 90" means that the Fuel Outlet is facing the RIGHT. "Straight" or "Downward" means that the Fuel Outlet is facing DOWN towards the ground.
• "R" (Reserve), "ON" and "OFF" just like OEM. Internal Female 22MM thread. 3/8" barb accepts 3/8" ID hose
• The built-in filter allows for extra protection against debris entering your fuel system while still providing maximum flow.
• Please make sure that you have at least 3" from the bottom of the petcock bung and the nearest obstruction in your tank (Baffles etc). We also offer these Petcocks in Polished Brass
