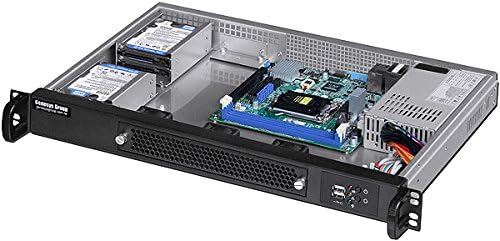

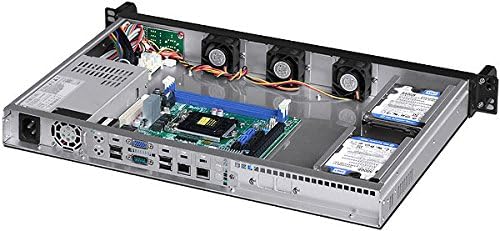

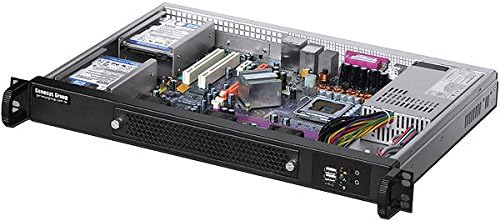

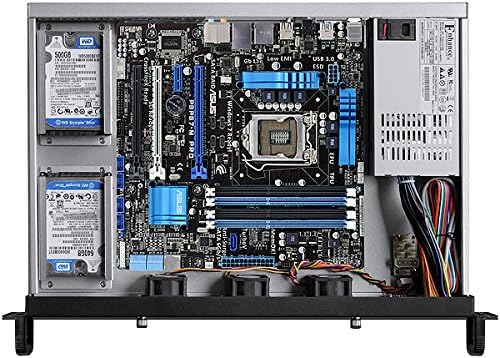

1U Rackmount Chassis(11.81" Deep)(Micro-ATX/Mini ITX)(4x2.5 7~15mmHDD/SSD)(Customize 1U IO Shield)(NO Power Supply,No Rail,No System and Case Only) IPC-1304M

The era of Multi-core has been the main stream nowadays, one of the defining characteristics of IPC-1304M is the short depth at 300mm (11.81"), it's also compatible with four 2.5" SSD or HDD which 7mm~15mm height compliant as well, it's also compatible for the latest 12Gb speed SFF-8643 SAS SSD. Maximum motherboard installable form factor is Micro-ATX 9.6" x 9.6" as well as Mini ITX 6.7" x 6.7". The cooling system equipped with three 40mmx20mm;(The right fan near HDDs one might need to remove due to conflict with SATA ports (Micro-ATX only)) silent fans and front bezel is equipped with quick release dust filter, effective dust-proof control and quick maintenance system environment. PRODUCT TECHNICAL SPECIFICATIONS Drive capacity: four 2.5" HDD/SSD, 7mm~15mm height compatible Two USB 2.0 ports at front bezel. One Dual GigaLAN module at rear panel as option Equipped with 3 brand new low noise 40mmx20mm intake fans (fan part# D40SM-12C) Room noise without 3 fans activated is 41dBA, tested by 10cm distance to running fans is 65dBA (including room noise) Equipped with quick release dust filter cover, effective dust control & quick maintenance Equipped with 3pin fan wire PCB which simplified fan connectors routing management Compatible motherboard: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7") Various P-Link Computer 1U I/O shield available (option, developing more items daily) Support standard 1U FlexATX 180W~500W power supply (max. psu depth: 150mm) (Power Supply not included) SGCC sheet metal by 1.0mm~2.0mm thickness with protective sheet on surface Standard paint: scratch-resistant black textured at front Chassis dimension: 19" x 1U x 300mm (11.81" deep) Accessory pack: M3 round head screw x17, #6 round head screw x17 Package: NW 3.8 KGM, GW 4.82 KGM, 1.0 CUFT (54x42x12.5cm, one box packed); S/H $25

• 1U Short 11.81" Deep Micro-ATX / Mini ITX Rackmount Chassis
• four 2.5" HDD/SSD, 7mm~15mm height compatible
• (1U Flex ATX PSU)
• (Micro-ATX / Mini ITX) Server Case
• Power Supply, Rail Set and CPU System on the pictures does not included
