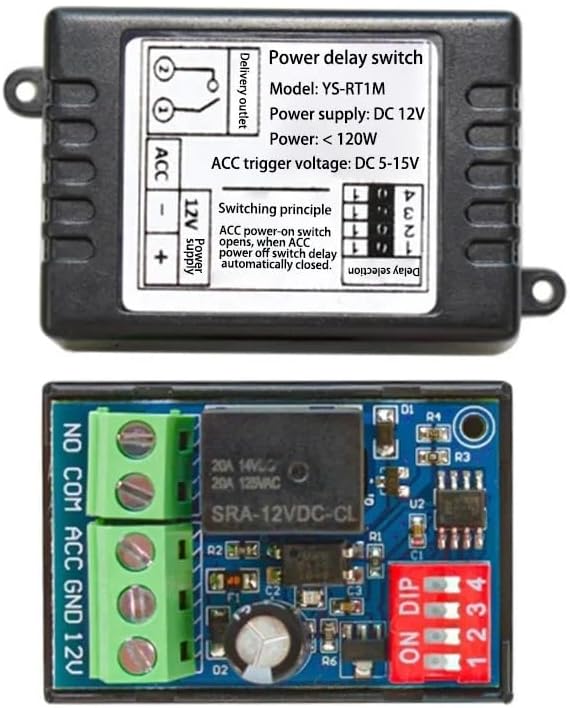

12 Volt Timer Relay On-Off Automotive Digital Delay Relay Electric Delay Timer Switch Cycle Time Delay Module YS-RT1C YS-RT1T(Power on delay Off)

converterFeatures:1.High quality shell dustproof and flame retardant.2.Automotive modification parts3.Time is optional you can choose according to your own needs.4.Easy to operate and can automatically close at a fixed time5.Widely used such as exhaust fans engines cooling fans lighting navigation media sound effects delayed lifting of doors and windows and other automotive circuit power-off delay controlParameters:Name: Automotive power on/off delay switchModel: YS-RT1QShell with hole specification: 63 * 35 * 22mmBare board specification: 45 * 29 * 18mmPower supply voltage: DC 12VStandby current: 10maWorking current: 68ma (current after the trigger switch is turned on)Output control voltage: DC 0-14V AC 0-125V<;;11AWorking temperature and humidity: -20 to 70 RH 80%Switch workflow: After powering on the switch when ACC detects power and delays for 8 seconds the switch remains closed. In this case ACC detects no power and delays for X and when the time is up the switch opens. (Among them 8 seconds is a fixed time that cannot be modified by users and can be customized)Model: YS-RT1CSpecification: 50x35x22mmPower supply voltage: DC 12VWorking current: 68ma (current after the trigger switch is turned on)Standby current: 10maOutput control voltage: DC 0-14V AC 0-125V<;;11AWorking temperature: -20 to 70 Working principle: After connecting the power to this device the trigger port provides voltage triggering and the switch automatically closes after a delay of a certain period of time when openedModel: YS-RT1KShell with hole specification: 63 * 35 * 22mmBare board specification: 45 * 29 * 18mmPower supply voltage: DC 12V<;;3MAWorking current: 68ma (current after the trigger switch is turned on)Output control voltage: DC 0-14V AC 0-125V<;;11AWorking temperature: -20 to 70 Wor
